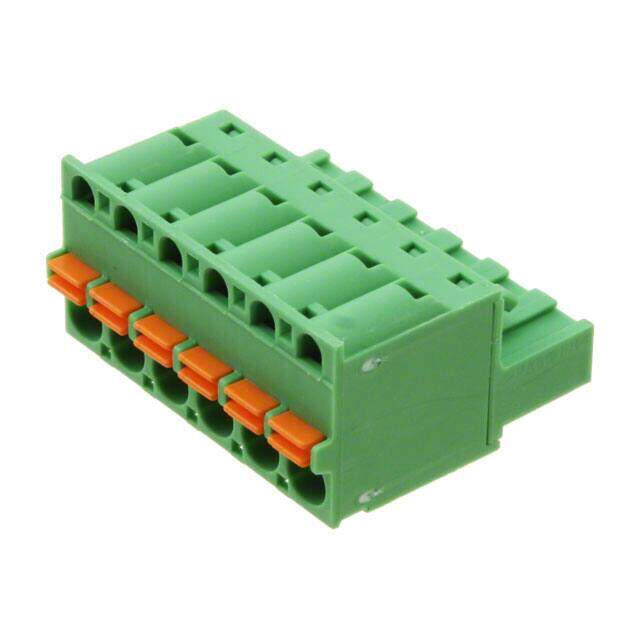

1910393 image
Favorite
1910393 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description TERM BLOCK PLUG 6POS STR 5MM
PDF
/
Buying Options
Total Price: USD $5.35
Unit Price: USD $5.3504
≥1 USD $5.3504
≥10 USD $5.20696
≥100 USD $4.8664
≥500 USD $4.477088
≥1000 USD $4.136422
≥3000 USD $3.953981
Inventory: 614
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 7 Weeks

Physical

Contact Plating Tin
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 9.840006g

Technical

Packaging Bulk
Published 2010
Series COMBICON FKC
Feature Retention Latches (Non-Wire Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Type Plug, Female Sockets
Color Green
Number of Rows 1
Voltage - Rated 250V
Additional Feature PA, 94V-0
Pitch 0.197 5.00mm
Orientation Straight
Insulation Height 0.591 15.00mm
Reach Compliance Code unknown
Current Rating 12A
Termination Style Screwless - Leg Spring, Push-In Spring
Approval Agency CB, CSA, VDE, cULus
Number of Contacts 6
Voltage 300V
Max Current Rating 12A
Number of Levels 1
Current 12A
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 12 AWG
Number of Decks 1
Wire Gauge or Range - AWG 12-26 AWG
Current - UL 10A
Voltage - IEC 630V
Number of Ways 6
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-2.5mm2
Wire Strip Length 10mm
Wire Cross Section 2.5 mm2
Fastening Method SPRING LOADED

Dimensions

Width 30.1mm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
