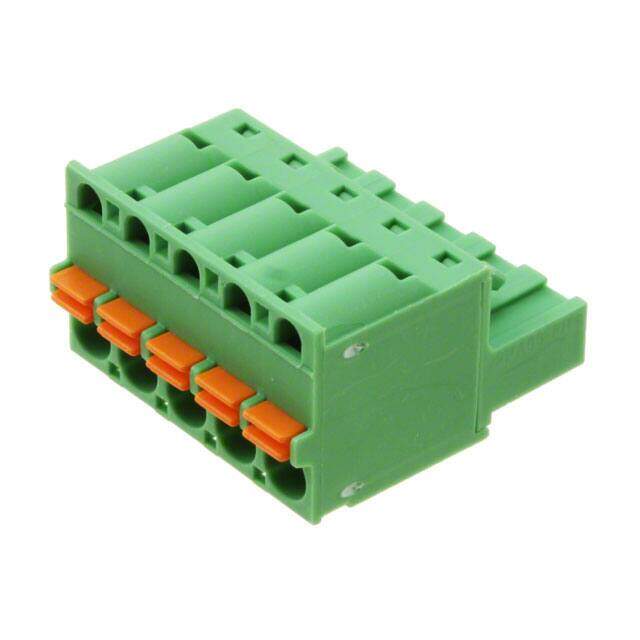

1910380 image
Favorite
1910380 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description TERM BLOCK PLUG 5POS STR 5MM
PDF
/
Buying Options
Total Price: USD $4.18
Unit Price: USD $4.18
≥1 USD $4.18
≥10 USD $4.06736
≥100 USD $3.8016
≥500 USD $3.497472
≥1000 USD $3.432
Inventory: 231
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 25.6mm
Length 15mm
Height 25.1mm

Technical

Fastening Method SPRING LOADED
Wire Strip Length 10mm
Wire Gauge or Range - mm2 0.2-2.5mm2
Plug Wire Entry 180°
Safety Approval UL
Number of Ways 5
Voltage - IEC 630V
Current - UL 10A
Wire Gauge or Range - AWG 12-26 AWG
Number of Decks 1
Wire Gauge (Min) 24 AWG
Wire Gauge (Max) 12 AWG
Current 12A
Number of Levels 1
Max Current Rating 12A
Voltage 300V
Number of Contacts 5
Approval Agency CB, CSA, VDE, cULus
Termination Style Screwless - Leg Spring, Push-In Spring
Current Rating 12A
Reach Compliance Code unknown
Insulation Height 0.591 15.00mm
Depth 15mm
Orientation Straight
Pitch 0.197 5.00mm
Additional Feature PA, 94V-0
Voltage - Rated 250V
Gender Female
Number of Rows 1
Color Green
Type Plug, Female Sockets
Connector Type Socket
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Retention Latches (Non-Wire Side)
Series COMBICON FKC
Published 2010
Packaging Bulk

Physical

Weight 8.230008g
Housing Material Polyamide (PA), Nylon
Material Polyamide
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Tin

Supply Chain

Factory Lead Time 4 Weeks
