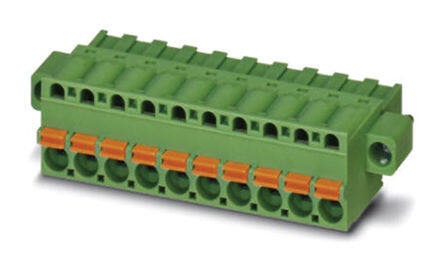

1909472
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Terminal Block Socket
PDF
/
Inventory: 5513
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Fastening Method SPRING LOADED
Wire Cross Section 2.5 mm2
Number of Positions Per Level 9
Current - IEC 12A
Wire Strip Length 10mm
Wire Gauge or Range - mm2 0.2-2.5mm2
Plug Wire Entry 180°
Safety Approval UL
Number of Ways 9
Voltage - IEC 630V
Wire Gauge or Range - AWG 12-26 AWG
Number of Decks 1
Contact Mating Finish Tin
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 26 AWG
Current 10A
Number of Levels 1
Voltage 300V
Termination Style Screwless - Leg Spring, Push-In Spring
Current Rating 12A
Insulation Height 0.591 15.00mm
Pitch 0.197 5.00mm
Voltage - Rated 250V
Gender Female
Number of Rows 1
Color Green
Type Plug, Female Sockets
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating Flange
Series COMBICON FKCT
Published 2011
Packaging Bulk
Physical
Weight 600.102706g
Housing Material Polyamide (PA), Nylon
Material Polyamide, Tin
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 5 Weeks
