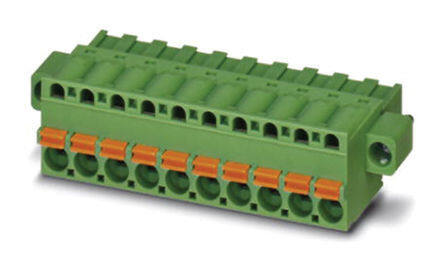

1909317 image
Favorite
1909317 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description COMBICON FKCT RoHS Compliant 2013 Retention Latches (Non-Wire Side) Terminal Block Plug, Female Sockets UL94V-0 26AWG 180° 10A
PDF
/
Buying Options
Total Price: USD $13.36
Unit Price: USD $13.363765
≥1 USD $13.363765
≥10 USD $12.60732
≥100 USD $11.893701
≥500 USD $11.220471
≥1000 USD $10.585356
Inventory: 5090
Minimum: 1
-
+

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Technical

Fastening Method SPRING LOADED
Wire Cross Section 2.5 mm2
Current - IEC 12A
Wire Strip Length 10mm
Wire Gauge or Range - mm2 0.2-2.5mm2
Plug Wire Entry 180°
Safety Approval UL
Number of Ways 12
Voltage - IEC 630V
Wire Gauge or Range - AWG 12-26 AWG
Number of Decks 1
Contact Mating Finish Tin
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 26 AWG
Current 10A
Number of Levels 1
Voltage 300V
Termination Style Screwless - Leg Spring, Push-In Spring
Current Rating 12A
Insulation Height 0.591 15.00mm
Pitch 0.197 5.00mm
HTS Code 8536.69.40.40
Additional Feature PA, 94V-0
Voltage - Rated 250V
Number of Rows 1
Color Green
Number of Positions 12
Type Plug, Female Sockets
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Retention Latches (Non-Wire Side)
Series COMBICON FKCT
Published 2013
Packaging Bulk

Physical

Weight 18.980006g
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging

Supply Chain

Factory Lead Time 4 Weeks
