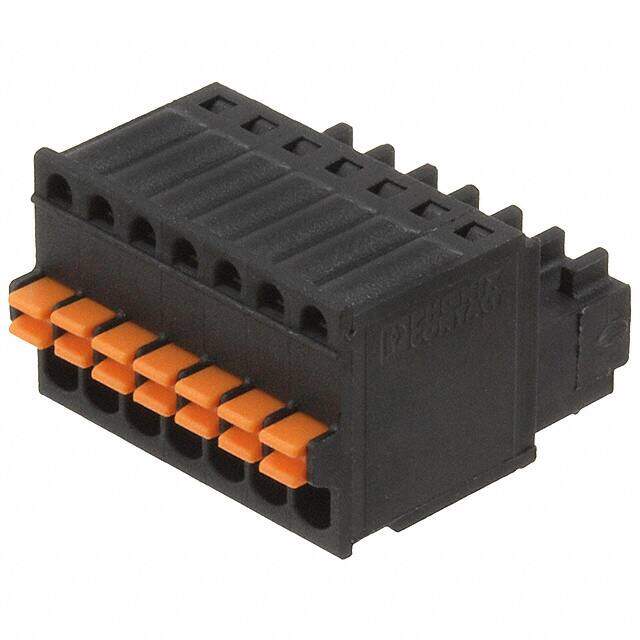

1908114 image
Favorite
1908114 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 7 Pos 2.5mm pitch Plug 26-20AWG Spring
PDF
/
Buying Options
Total Price: USD $7.56
Unit Price: USD $7.5592
≥1 USD $7.5592
Inventory: 116
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 19.05mm
Length 11.75mm
Height 18.1mm

Technical

Number of Positions Per Level 7
Wire Strip Length 8mm
Wire Gauge or Range - mm2 0.14-0.5mm2
Plug Wire Entry 180°
Voltage - IEC 320V
Wire Gauge or Range - AWG 20-28 AWG
Wire Gauge (Min) 20 AWG
Wire Gauge (Max) 28 AWG
Current 4A
Number of Levels 1
Voltage 125V
Termination Style Screwless - Leg Spring, Push-In Spring
Current Rating 4A
Insulation Height 0.463 11.76mm
Pitch 0.098 2.50mm
HTS Code 8536.69.40.40
Voltage - Rated 100V
Gender Male
Color Black
Type Plug, Female Sockets
Connector Type Socket
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series MICRO-COMBICON FK-MC
Published 2012
Packaging Bulk

Physical

Weight 4.040005g
Housing Material Polyamide (PA), Nylon
Material Polyamide
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Tin

Supply Chain

Factory Lead Time 7 Weeks
