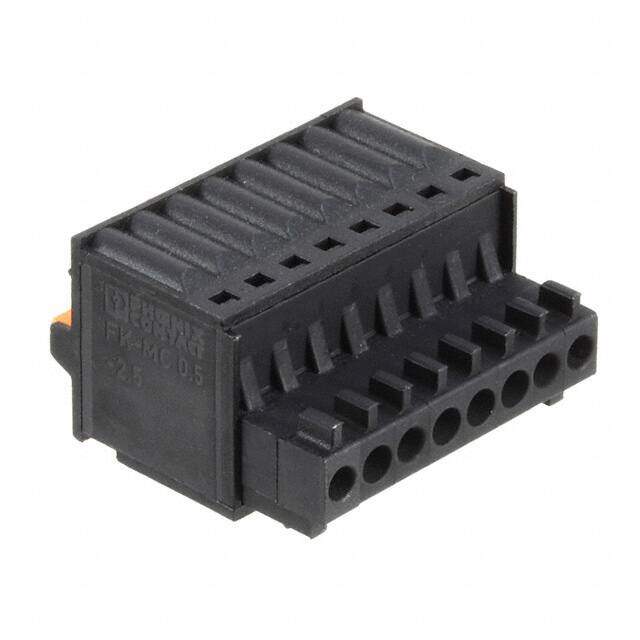

1908101
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 8 Pos 2.5mm pitch Plug 26-20AWG Spring
PDF
/
Buying Options
Total Price: USD $10.19
Unit Price: USD $10.1904
≥1 USD $10.1904
≥10 USD $9.91496
≥100 USD $9.2664
≥500 USD $8.525088
≥1000 USD $8.365491
Inventory: 54
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Contact Plating Tin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 5.00301g
Technical
Packaging Bulk
Published 2011
Series MICRO-COMBICON FK-MC
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Connector Type Socket
Type Plug, Female Sockets
Number of Positions 8
Color Black
Voltage - Rated 100V
Pitch 0.098 2.50mm
Insulation Height 0.463 11.76mm
Reach Compliance Code unknown
Current Rating 4A
Termination Style Screwless - Leg Spring, Push-In Spring
Voltage 125V
Number of Levels 1
Current 4A
Wire Gauge (Max) 28 AWG
Wire Gauge (Min) 20 AWG
Wire Gauge or Range - AWG 20-28 AWG
Voltage - IEC 320V
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.14-0.5mm2
Wire Strip Length 8mm
Dimensions
Height 19.05mm
Length 11.75mm
Width 20.6mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Lead Free Lead Free
