1902851
RoHS
/
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

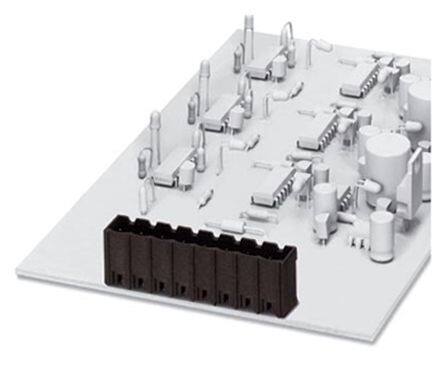

Pluggable Terminal Blocks 6 Pos 5.08mm pitch Through Hole Header
PDF
/
Inventory: 1133
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 3.550012g
Technical
Packaging Bulk
Published 2011
Series COMBICON MSTBVA
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 6
Color Black
Number of Rows 1
Voltage - Rated 250V
Additional Feature UL 94V-0
Pitch 0.200 5.08mm
Depth 8.9mm
Insulation Height 0.480 12.20mm
Current Rating 12A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.146 3.70mm
Max Current Rating 12A
Number of Levels 1
Current 12A
Contact Mating Finish Tin
Number of Decks 1
Voltage - IEC 400V
Number of Ways 6
Safety Approval UL; IEC; VDE
Header Orientation Vertical
Fastening Method CONNECTOR
Dimensions
Length 32.48mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
