1902822
RoHS
/
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

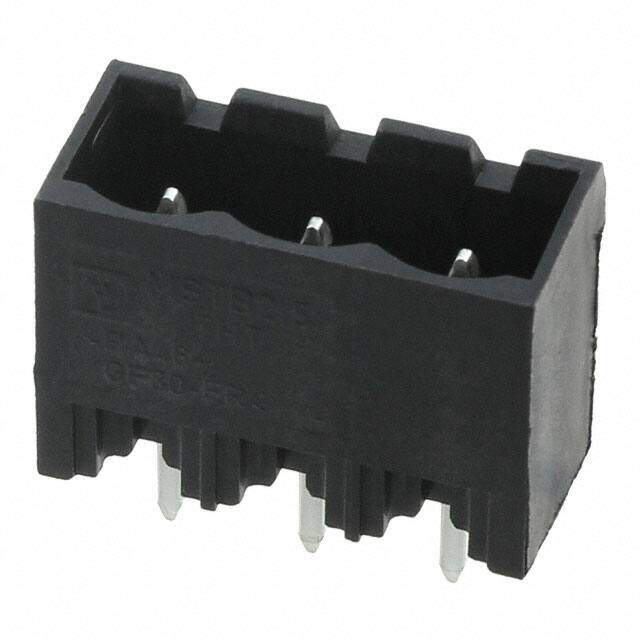

Pluggable Terminal Blocks 3 Pos 5.08mm pitch Through Hole Header
PDF
/
Inventory: 1192
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 17.24mm
Length 17.24mm
Height 15.9mm
Technical
Fastening Method CONNECTOR
Header Orientation Vertical
Safety Approval UL; IEC; VDE
Number of Ways 3
Voltage - IEC 400V
Number of Decks 1
Current 12A
Number of Levels 1
Max Current Rating 12A
Contact Tail Length 0.146 3.70mm
Voltage 300V
Termination Style Solder
Current Rating 12A
Insulation Height 0.480 12.20mm
Depth 8.9mm
Pitch 0.200 5.08mm
Additional Feature UL 94V-0
Voltage - Rated 250V
Number of Rows 1
Color Black
Number of Positions 3
Type Header, Male Pins, Shrouded (4 Side)
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Pbfree Code yes
Series COMBICON MSTBVA
Published 2010
Packaging Bulk
Physical
Weight 2.42g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Supply Chain
Factory Lead Time 3 Weeks
