1902631
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

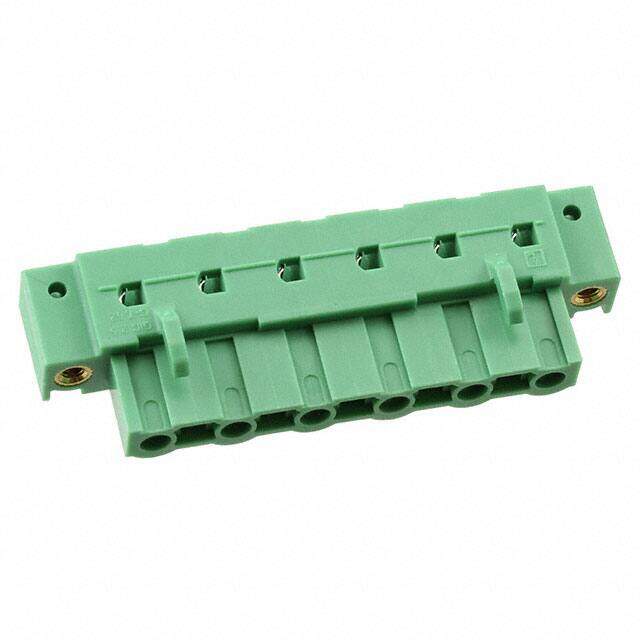

TERM BLOCK HDR 6POS 90DEG 7.62MM
PDF
/
Buying Options
Total Price: USD $11.78
Unit Price: USD $11.7832
≥1 USD $11.7832
≥10 USD $11.46552
≥100 USD $10.71576
≥500 USD $9.858552
≥1000 USD $9.673946
Inventory: 141
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Weight 6.589988g
Technical
Packaging Bulk
Published 2011
Series COMBICON GIC
Feature Mating and Mounting Flange, Retention Latches
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Female Sockets
Number of Positions 6
Color Green
Voltage - Rated 400V
Pitch 0.300 7.62mm
Insulation Height 0.402 10.20mm
Reach Compliance Code not_compliant
Current Rating 12A
Termination Style Solder
Voltage 300V
Number of Levels 1
Current 10A
Wire Gauge (Max) 10 AWG
Wire Gauge (Min) 24 AWG
Contact Mating Finish Gold
Voltage - IEC 500V
Header Orientation 90°, Right Angle
Compliance
RoHS Status RoHS Compliant
