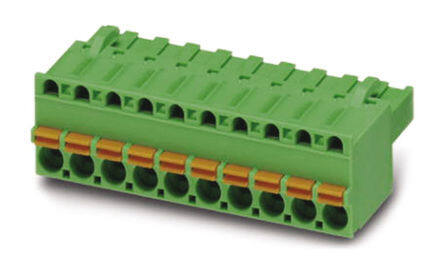

1902408
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks FKCT 2.5/12-STF-5.08
PDF
/
Buying Options
Total Price: USD $15.4
Unit Price: USD $15.395272
≥1 USD $15.395272
≥10 USD $14.523844
≥100 USD $13.701738
≥500 USD $12.926169
≥1000 USD $12.194502
Inventory: 6944
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 21.10999g
Technical
Packaging Bulk
Published 2011
Series COMBICON FKCT
Feature Mating Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Connector Type Socket
Type Plug, Female Sockets
Number of Positions 12
Color Green
Number of Rows 1
Voltage - Rated 250V
Additional Feature PA, UL 94V0
HTS Code 8536.69.40.40
Pitch 0.200 5.08mm
Insulation Height 0.591 15.00mm
Current Rating 12A
Termination Style Screwless - Leg Spring, Push-In Spring
Voltage 300V
Number of Levels 1
Current 10A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 12 AWG
Number of Decks 1
Wire Gauge or Range - AWG 12-26 AWG
Voltage - IEC 630V
Number of Ways 12
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-2.5mm2
Wire Strip Length 10mm
Current - IEC 12A
Wire Cross Section 2.5 mm2
Fastening Method SPRING LOADED
Dimensions
Height 25.6mm
Length 15mm
Width 70.96mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
