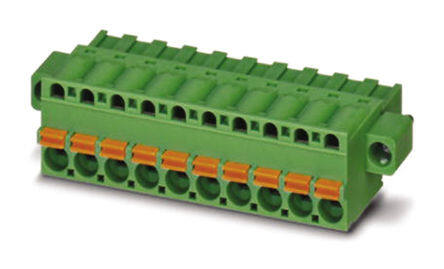

1902314
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 3 Pos 5.08mm pitch Plug 24-12AWG Spring
PDF
/
Buying Options
Total Price: USD $3.26
Unit Price: USD $3.2648
≥1 USD $3.2648
≥10 USD $3.17768
≥100 USD $2.97
≥500 USD $2.7324
≥1000 USD $2.681254
Inventory: 133
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide, Tin
Housing Material Polyamide (PA), Nylon
Weight 6.099995g
Technical
Packaging Bulk
Published 2011
Series COMBICON FKCT
Feature Mating Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Connector Type Socket
Type Plug, Female Sockets
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 250V
Additional Feature PA, UL 94V0
Pitch 0.200 5.08mm
Insulation Height 0.591 15.00mm
Current Rating 12A
Termination Style Screwless - Leg Spring, Push-In Spring
Voltage 300V
Number of Levels 1
Current 10A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 12 AWG
Number of Decks 1
Wire Gauge or Range - AWG 12-26 AWG
Voltage - IEC 630V
Number of Ways 3
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-2.5mm2
Wire Strip Length 10mm
Current - IEC 12A
Number of Positions Per Level 3
Wire Cross Section 2.5 mm2
Fastening Method SPRING LOADED
Dimensions
Height 25.24mm
Length 15mm
Width 25.6mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
