1900989
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

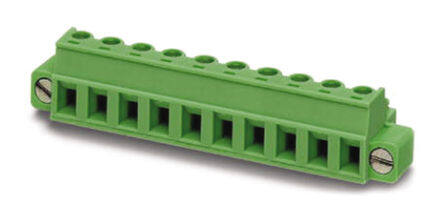

Pluggable Terminal Blocks 12 Pos 5.08mm pitch Plug 28-16 AWG Screw
PDF
/
Buying Options
Total Price: USD $9.47
Unit Price: USD $9.4688
≥1 USD $9.4688
Inventory: 70
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Mount Free Hanging, Panel
Mounting Type Free Hanging (In-Line)
Material Polyamide, Tin
Housing Material Polyamide (PA), Nylon
Weight 9.77999g
Technical
Packaging Bulk
Published 2011
Series COMBICON MC
Feature Mating Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Screw
Type Plug, Female Sockets
Number of Positions 12
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 250V
Additional Feature PA, UL 94V-0
Pitch 0.200 5.08mm
Orientation Right Angle
Depth 11.1mm
Insulation Height 0.437 11.10mm
Current Rating 8A
Termination Style Screw - Rising Cage Clamp
Voltage 300V
Number of Circuits 3
Max Current Rating 8A
Number of Levels 1
Current 8A
Wire Gauge (Max) 16 AWG
Wire Gauge (Min) 28 AWG
Contact Mating Finish Tin
Number of Decks 1
Wire Gauge or Range - AWG 14-30 AWG
Voltage - IEC 630V
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways 12
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.14-1.5mm2
Wire Strip Length 7mm
Screw Size M2
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
