1900963
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

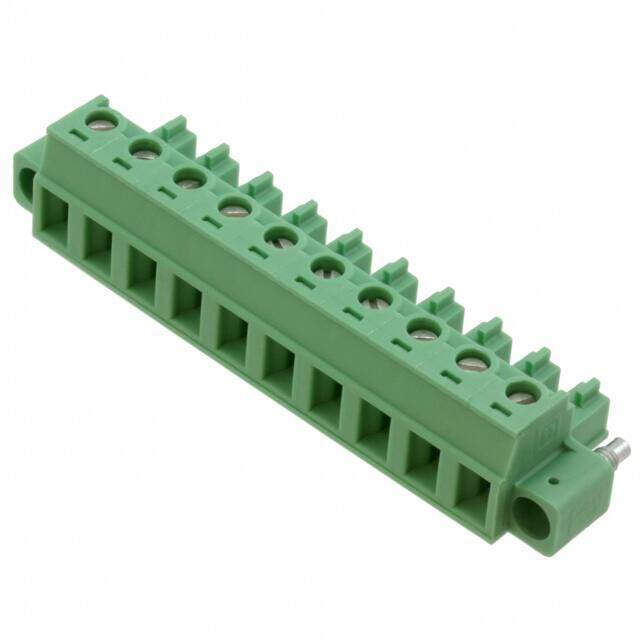

Pluggable Terminal Blocks 10 Pos 5.08mm pitch Plug 28-16 AWG Screw
PDF
/
Buying Options
Total Price: USD $10.44
Unit Price: USD $10.4368
≥1 USD $10.4368
≥10 USD $10.1508
≥100 USD $9.4864
≥500 USD $8.727488
≥1000 USD $8.06344
≥3000 USD $7.707709
Inventory: 86
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide, Tin
Housing Material Polyamide (PA), Nylon
Weight 8.199986g
Technical
Packaging Bulk
Published 2015
Series COMBICON MC
Feature Mating Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Screw
Type Plug, Female Sockets
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 250V
Additional Feature PA, UL 94V-0
HTS Code 8536.69.40.40
Pitch 0.200 5.08mm
Depth 11.1mm
Insulation Height 0.437 11.10mm
Current Rating 8A
Termination Style Screw - Rising Cage Clamp
Voltage 300V
Number of Levels 1
Current 8A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 14 AWG
Contact Mating Finish Tin
Voltage - UL 300V
Number of Decks 1
Wire Gauge or Range - AWG 14-30 AWG
Voltage - IEC 630V
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways 10
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.14-1.5mm2
Wire Strip Length 7mm
Number of Positions Per Level 10
Screw Size M2
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
