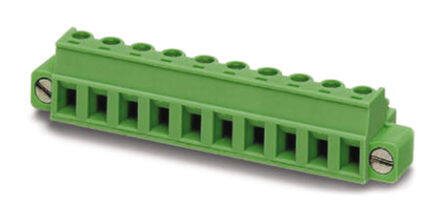

1900921
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 6 Pos 5.08mm pitch Plug 28-16 AWG Screw
PDF
/
Inventory: 9913
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Screw Size M2
Number of Positions Per Level 6
Wire Strip Length 7mm
Wire Gauge or Range - mm2 0.14-1.5mm2
Plug Wire Entry 180°
Safety Approval UL
Number of Ways 6
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Voltage - IEC 630V
Wire Gauge or Range - AWG 14-30 AWG
Number of Decks 1
Voltage - UL 300V
Contact Mating Finish Tin
Wire Gauge (Min) 14 AWG
Wire Gauge (Max) 30 AWG
Current 8A
Number of Levels 1
Voltage 300V
Termination Style Screw - Rising Cage Clamp
Current Rating 8A
Insulation Height 0.437 11.10mm
Depth 11.1mm
Pitch 0.200 5.08mm
Additional Feature PA, UL 94V-0
Voltage - Rated 250V
Gender Female
Number of Rows 1
Color Green
Type Plug, Female Sockets
Connector Type Screw
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating Flange
Series COMBICON MC
Published 2011
Packaging Bulk
Physical
Weight 5.249991g
Housing Material Polyamide (PA), Nylon
Material Polyamide, Tin
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 5 Weeks
