1900853
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

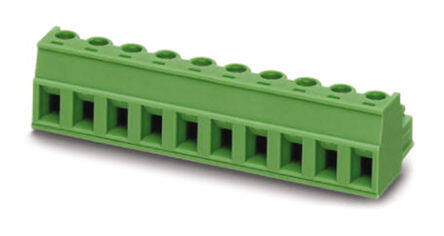

Pluggable Terminal Blocks 10 Pos 5.08mm pitch Plug 28-16 AWG Screw
PDF
/
Buying Options
Total Price: USD $10.58
Unit Price: USD $10.583418
≥1 USD $10.583418
≥10 USD $9.984353
≥100 USD $9.419201
≥500 USD $8.886042
≥1000 USD $8.383055
Inventory: 6043
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Contact Plating Tin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide, Tin
Housing Material Polyamide (PA), Nylon
Weight 7.479993g
Technical
Packaging Bulk
Published 2011
Series COMBICON MC
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Connector Type Screw, Socket
Type Plug, Female Sockets
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 250V
Additional Feature PA, UL 94V0
HTS Code 8536.69.40.40
Pitch 0.200 5.08mm
Depth 11.1mm
Insulation Height 0.437 11.10mm
Current Rating 8A
Termination Style Screw - Rising Cage Clamp
Voltage 300V
Number of Levels 1
Current 8A
Wire Gauge (Max) 16 AWG
Wire Gauge (Min) 28 AWG
Number of Decks 1
Wire Gauge or Range - AWG 14-30 AWG
Voltage - IEC 630V
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways 10
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.14-1.5mm2
Wire Strip Length 7mm
Number of Positions Per Level 10
Screw Size M2
Dimensions
Height 15.5mm
Length 11.1mm
Width 50.8mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
