1900060
RoHS
/
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

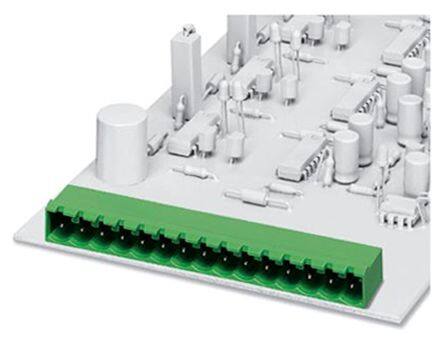

Pluggable Terminal Blocks 24 Pos 5mm pitch Press In Header
PDF
/
Inventory: 1243
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Length 35mm
Technical
Current - IEC 12A
Header Orientation 90°, Right Angle
Safety Approval UL
Number of Ways 24
Voltage - IEC 400V
Number of Decks 1
Contact Mating Finish Tin
Current 15A
Number of Levels 1
Contact Tail Length 0.165 4.19mm
Voltage 300V
Termination Style Press-Fit
Current Rating 12A
Insulation Height 0.339 8.61mm
Depth 35mm
Pitch 0.197 5.00mm
HTS Code 8536.69.40.40
Additional Feature PBT, UL 94V-0
Voltage - Rated 250V
Number of Rows 1
Color Green
Number of Positions 24
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Series COMBICON EMSTBA
Published 2011
Packaging Bulk
Physical
Weight 10.220003g
Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 4 Weeks
