1897801
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

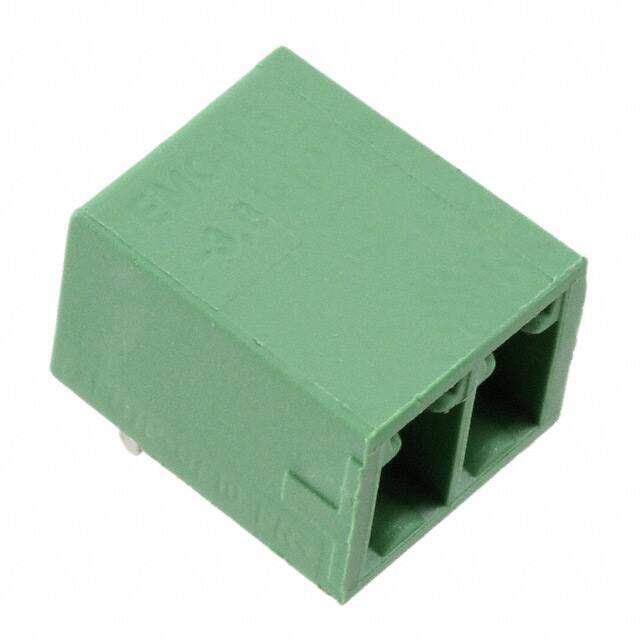

Pluggable Terminal Blocks 2 Pos 3.81mm pitch Press In Header
PDF
/
Buying Options
Total Price: USD $1.47
Unit Price: USD $1.470727
≥1 USD $1.470727
≥10 USD $1.387485
≥100 USD $1.308945
≥500 USD $1.234847
≥1000 USD $1.164953
Inventory: 1320
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polybutylene Terephthalate (PBT)
Weight 110.000005g
Technical
Packaging Bulk
Published 2011
Series COMBICON EMC
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 2
Color Green
Number of Rows 1
Voltage - Rated 160V
Additional Feature PBT, 94V-0
HTS Code 8536.69.40.40
Pitch 0.150 3.81mm
Depth 6.92mm
Insulation Height 0.276 7.00mm
Current Rating 8A
Termination Style Press-Fit
Voltage 300V
Contact Tail Length 0.138 3.50mm
Number of Levels 1
Current 8A
Contact Mating Finish Tin
Number of Decks 1
Voltage - IEC 250V
Number of Ways 2
Safety Approval UL
Header Orientation 90┬?, Right Angle
Dimensions
Length 10.7mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
