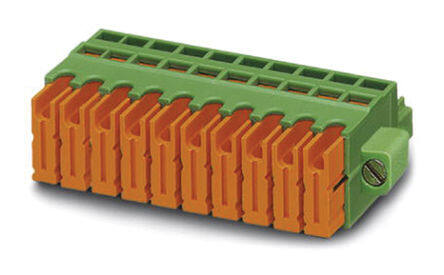

1897607 image
Favorite
1897607 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 8 Pos 3.81mm pitch Plug 22-20 AWG IDC
PDF
/
Inventory: 1319
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 40.87mm
Length 12.9mm
Height 22.3mm

Technical

Fastening Method IDC
Wire Cross Section 0.5 mm2
Number of Positions Per Level 8
Wire Gauge or Range - mm2 0.34-0.5mm2
Plug Wire Entry 180°
Safety Approval UL
Number of Ways 8
Voltage - IEC 400V
Wire Gauge or Range - AWG 20-24 AWG
Number of Decks 1
Voltage - UL 300V
Wire Gauge (Min) 22 AWG
Wire Gauge (Max) 20 AWG
Current 6A
Number of Levels 1
Voltage 300V
Termination Style IDC
Current Rating 6A
Insulation Height 0.508 12.90mm
Pitch 0.150 3.81mm
Additional Feature PA, 94V-0
Voltage - Rated 200V
Gender Female
Number of Rows 1
Color Green
Type Plug, Female Sockets
Connector Type IDC, IDT, Socket
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating Flange
Series COMBICON QC
Published 2010
Packaging Bulk

Physical

Weight 96.999991g
Housing Material Polyamide (PA), Nylon
Material Polyamide, Tin
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Plating Tin

Supply Chain

Factory Lead Time 4 Weeks
