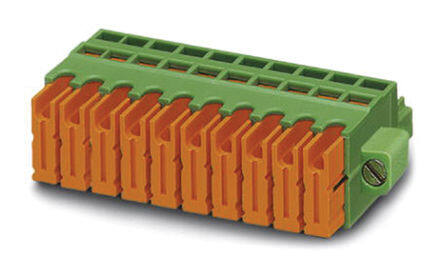

1897584 image
Favorite
1897584 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 6 Pos 3.81mm pitch Plug 22-20 AWG IDC
PDF
/
Buying Options
Total Price: USD $9.43
Unit Price: USD $9.431847
≥1 USD $9.431847
≥10 USD $8.897975
≥100 USD $8.394314
≥500 USD $7.919164
≥1000 USD $7.470912
Inventory: 3732
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 22.3mm
Length 33.3mm
Height 12.9mm

Technical

Fastening Method IDC
Wire Cross Section 0.5 mm2
Number of Positions Per Level 6
Wire Gauge or Range - mm2 0.34-0.5mm2
Plug Wire Entry 180°
Safety Approval UL
Number of Ways 6
Voltage - IEC 400V
Wire Gauge or Range - AWG 20-24 AWG
Number of Decks 1
Voltage - UL 300V
Contact Mating Finish Tin
Wire Gauge (Min) 22 AWG
Wire Gauge (Max) 20 AWG
Current 6A
Number of Levels 1
Voltage 300V
Termination Style IDC
Current Rating 6A
Insulation Height 0.508 12.90mm
Pitch 0.150 3.81mm
Additional Feature PA, 94V-0
Voltage - Rated 200V
Gender Female
Number of Rows 1
Color Green
Type Plug, Female Sockets
Connector Type IDC, IDT
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating Flange
Series COMBICON QC
Published 2010
Packaging Bulk

Physical

Weight 96.999991g
Housing Material Polyamide (PA), Nylon
Material Polyamide, Tin
Mounting Type Free Hanging (In-Line)
Mount Free Hanging

Supply Chain

Factory Lead Time 11 Weeks
