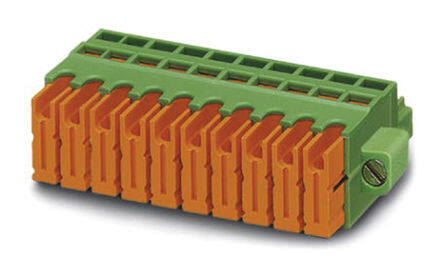

1897568
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 4 Pos 3.81mm pitch Plug 22-20 AWG IDC
PDF
/
Buying Options
Total Price: USD $6.6
Unit Price: USD $6.60312
≥1 USD $6.60312
≥10 USD $6.229359
≥100 USD $5.876759
≥500 USD $5.544106
≥1000 USD $5.230284
Inventory: 6586
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide, Tin
Housing Material Polyamide (PA), Nylon
Weight 96.999991g
Technical
Packaging Bulk
Published 2003
Series COMBICON QC
Feature Mating Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type IDC, IDT
Type Plug, Female Sockets
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 200V
Pitch 0.150 3.81mm
Insulation Height 0.508 12.90mm
Current Rating 6A
Termination Style IDC
Voltage 300V
Number of Levels 1
Current 6A
Wire Gauge (Max) 20 AWG
Wire Gauge (Min) 22 AWG
Contact Mating Finish Tin
Voltage - UL 300V
Number of Decks 1
Wire Gauge or Range - AWG 20-24 AWG
Voltage - IEC 400V
Number of Ways 4
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.34-0.5mm2
Number of Positions Per Level 4
Wire Cross Section 0.5 mm2
Fastening Method IDC
Dimensions
Height 12.9mm
Length 25.6mm
Width 22.3mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
