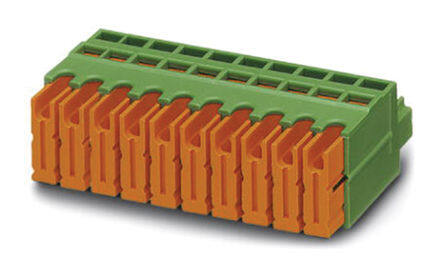

1897490 image
Favorite
1897490 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 12 Pos 3.81mm pitch Plug 22-20 AWG IDC
PDF
/
Buying Options
Total Price: USD $44.64
Unit Price: USD $44.641226
≥1 USD $44.641226
≥200 USD $17.812114
≥500 USD $17.217371
≥1000 USD $16.923281
Inventory: 1198
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 46.51mm
Length 12.9mm
Height 22.3mm

Technical

Fastening Method IDC
Wire Cross Section 0.34 mm2
Number of Positions Per Level 12
Wire Gauge or Range - mm2 0.34-0.5mm2
Plug Wire Entry 180°
Safety Approval UL
Number of Ways 12
Voltage - IEC 400V
Wire Gauge or Range - AWG 20-24 AWG
Number of Decks 1
Voltage - UL 300V
Wire Gauge (Min) 22 AWG
Wire Gauge (Max) 20 AWG
Current 6A
Number of Levels 1
Voltage 300V
Termination Style IDC
Current Rating 6A
Insulation Height 0.508 12.90mm
Pitch 0.150 3.81mm
HTS Code 8536.69.40.40
Additional Feature PA, UL 94V0
Voltage - Rated 200V
Gender Female
Number of Rows 1
Color Green
Type Plug, Female Sockets
Connector Type IDC, IDT, Socket
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON QC
Published 2003
Packaging Bulk

Physical

Weight 96.999991g
Housing Material Polyamide (PA), Nylon
Material Polyamide, Tin
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Plating Tin

Supply Chain

Factory Lead Time 7 Weeks
