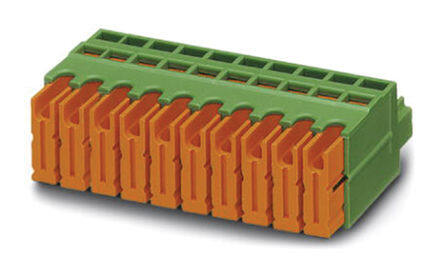

1897461
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 9 Pos 3.81mm pitch Plug 22-20 AWG IDC
PDF
/
Inventory: 1146
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide, Tin
Housing Material Polyamide (PA), Nylon
Weight 96.999991g
Technical
Packaging Bulk
Published 2010
Series COMBICON QC
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type IDC, IDT
Type Plug, Female Sockets
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 200V
Pitch 0.150 3.81mm
Insulation Height 0.508 12.90mm
Current Rating 6A
Termination Style IDC
Voltage 300V
Number of Levels 1
Current 6A
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 20 AWG
Contact Mating Finish Tin
Voltage - UL 300V
Number of Decks 1
Wire Gauge or Range - AWG 20-24 AWG
Voltage - IEC 400V
Number of Ways 9
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.34-0.5mm2
Number of Positions Per Level 9
Wire Cross Section 0.34 mm2
Fastening Method IDC
Dimensions
Height 12.9mm
Length 35.1mm
Width 22.3mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
