1897403
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

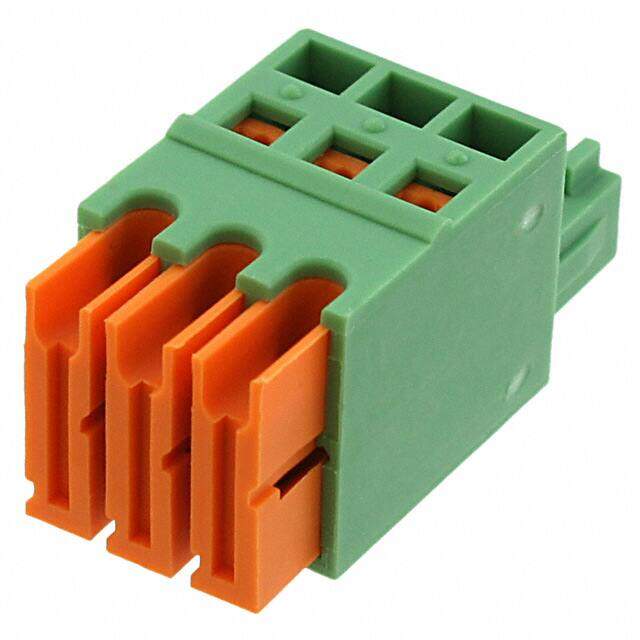

Conn Terminal Blocks F 3 POS 3.81mm IDT RA Cable Mount 6A
PDF
/
Buying Options
Total Price: USD $4.04
Unit Price: USD $4.036787
≥1 USD $4.036787
≥10 USD $3.808286
≥100 USD $3.592719
≥500 USD $3.389364
≥1000 USD $3.19751
Inventory: 3271
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide, Tin
Housing Material Polyamide (PA), Nylon
Weight 96.999991g
Technical
Packaging Bulk
Published 2010
Series COMBICON QC
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type IDC, IDT
Type Plug, Female Sockets
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 200V
Additional Feature PA, UL 94V0
Pitch 0.150 3.81mm
Insulation Height 0.508 12.90mm
Reach Compliance Code unknown
Current Rating 6A
Termination Style IDC
Voltage 300V
Number of Levels 1
Current 6A
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 20 AWG
Contact Mating Finish Tin
Voltage - UL 300V
Number of Decks 1
Wire Gauge or Range - AWG 20-24 AWG
Voltage - IEC 400V
Number of Ways 3
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.34-0.5mm2
Number of Positions Per Level 3
Fastening Method IDC
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
