1897092
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

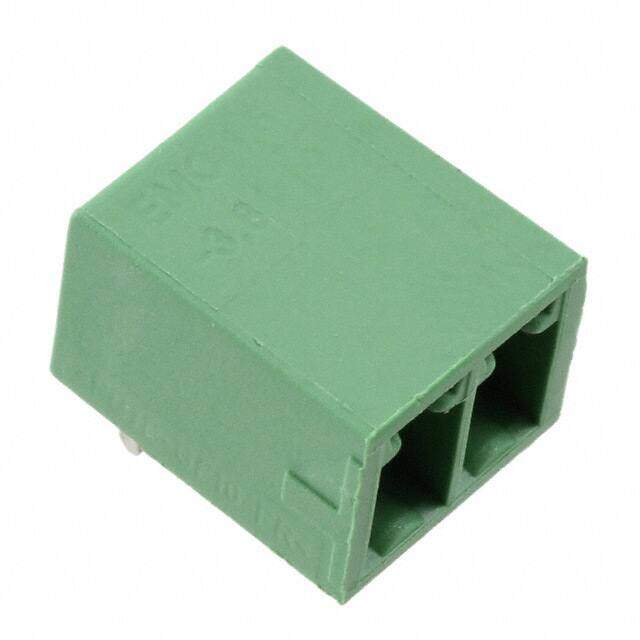

Pluggable Terminal Blocks 2 Pos 3.5mm pitch Press In Header
PDF
/
Inventory: 1118
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Header Orientation 90°, Right Angle
Voltage - IEC 250V
Contact Mating Finish Tin
Current 8A
Number of Levels 1
Contact Tail Length 0.138 3.50mm
Voltage 300V
Termination Style Press-Fit
Current Rating 8A
Reach Compliance Code unknown
Insulation Height 0.276 7.00mm
Pitch 0.138 3.50mm
HTS Code 8536.69.40.40
Voltage - Rated 160V
Color Green
Number of Positions 2
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Series COMBICON EMC
Published 2011
Packaging Bulk
Physical
Weight 110.000005g
Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 3 Weeks
