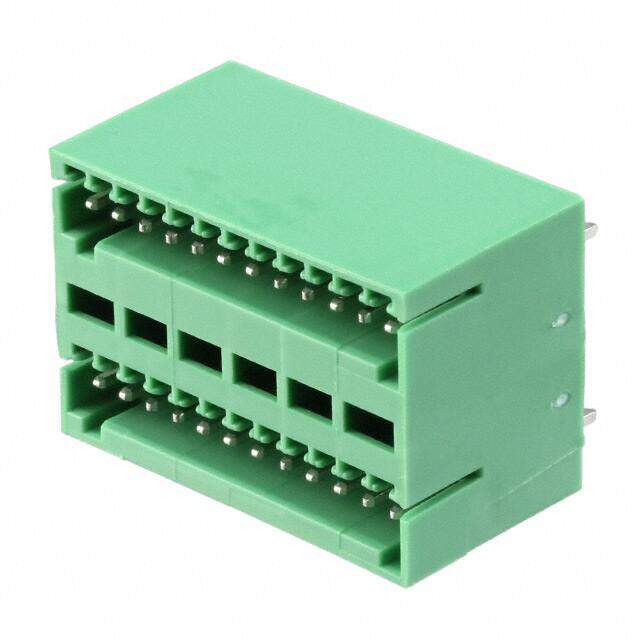

1895010 image
Favorite
1895010 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 12 Pos 2.5mm pitch Through Hole Header
PDF
/
Inventory: 1159
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 4 Weeks

Physical

Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 9.239988g

Technical

Packaging Bulk
Published 2010
Series MICRO-COMBICON MCDV
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 24
Color Green
Number of Rows 1
Voltage - Rated 80V
Additional Feature PA, 94V-0
HTS Code 8536.69.40.40
Pitch 0.098 2.50mm
Insulation Height 0.689 17.50mm
Reach Compliance Code unknown
Current Rating 4A
Termination Style Solder
Voltage 125V
Contact Tail Length 0.138 3.50mm
Number of Levels 2
Current 4A
Contact Mating Finish Tin
Number of Decks 1
Voltage - IEC 320V
Positions Per Level 12
Number of Ways 12
Safety Approval UL
Header Orientation Vertical

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
