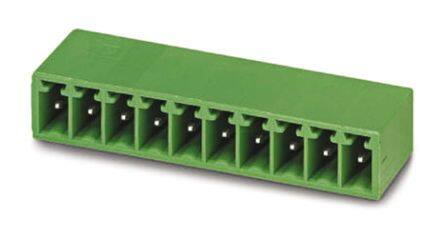

1894891 image
Favorite
1894891 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 11 Pos 2.5mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $14.15
Unit Price: USD $14.1504
≥1 USD $14.1504
≥10 USD $13.76584
≥100 USD $12.8656
≥500 USD $11.83644
≥1000 USD $10.93583
≥3000 USD $10.667131
Inventory: 109
Minimum: 1
-
+

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Length 29.4mm

Technical

Header Orientation 90°, Right Angle
Safety Approval UL
Number of Ways 11
Positions Per Level 11
Voltage - IEC 320V
Number of Decks 1
Contact Mating Finish Tin
Current 4A
Number of Levels 2
Max Current Rating 4A
Contact Tail Length 0.150 3.81mm
Voltage 125V
Termination Style Solder
Current Rating 4A
Insulation Height 0.862 21.89mm
Depth 17.5mm
Orientation Right Angle
Pitch 0.098 2.50mm
HTS Code 8536.69.40.40
Additional Feature PA, 94V-0
Voltage - Rated 80V
Number of Rows 1
Color Green
Number of Positions 22
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series MICRO-COMBICON MCD
Published 2011
Packaging Bulk

Physical

Weight 9.180001g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 7 Weeks
