RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets

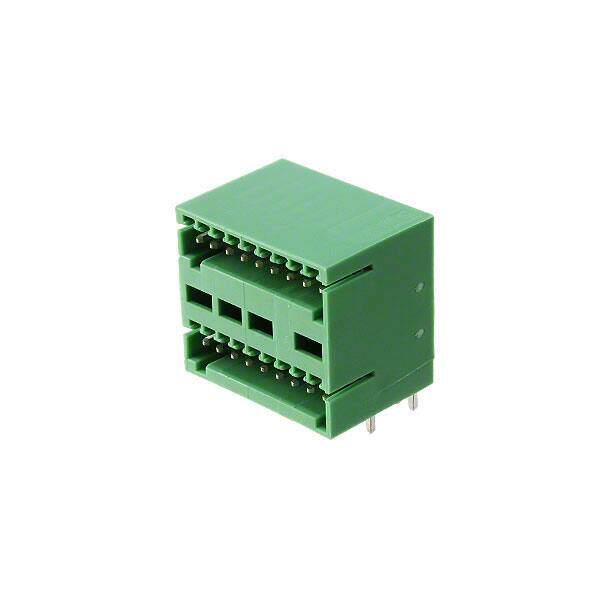

Description Terminal block; PCB; Header; Male Pins; Shrouded (4 Side); 18 position; 4A; 320V; Solder
PDF
/
Buying Options
Total Price: USD $8.93
Unit Price: USD $8.932
≥1 USD $8.932
Inventory: 69
Minimum: 1
-
+

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Length 24.4mm

Technical

Header Orientation 90°, Right Angle
Safety Approval UL
Number of Ways 9
Positions Per Level 9
Voltage - IEC 320V
Number of Decks 1
Contact Mating Finish Tin
Current 4A
Number of Levels 2
Max Current Rating 4A
Contact Tail Length 0.150 3.81mm
Voltage 125V
Termination Style Solder
Current Rating 4A
Insulation Height 0.862 21.89mm
Depth 17.5mm
Orientation Right Angle
Pitch 0.098 2.50mm
Voltage - Rated 80V
Number of Rows 1
Color Green
Number of Positions 18
Type Header, Male Pins, Shrouded (4 Side)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series MICRO-COMBICON MCD
Published 2011
Packaging Bulk

Physical

Weight 7.749994g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 4 Weeks
