1894846
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

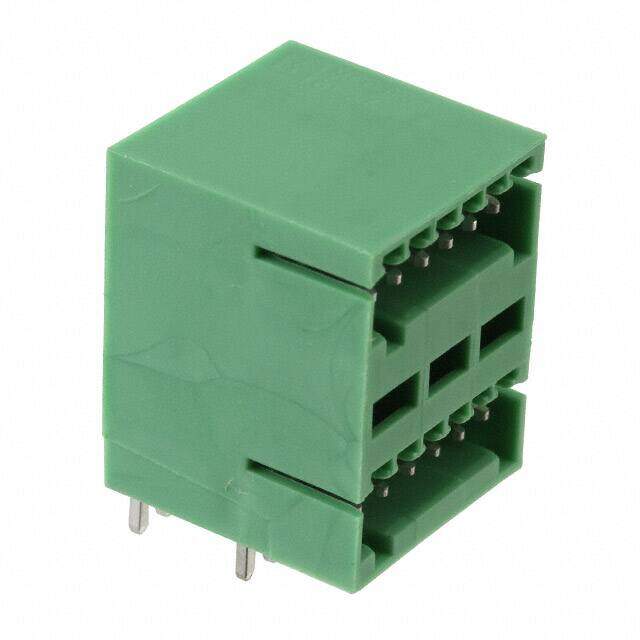

Pluggable Terminal Blocks 6 Pos 2.5mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $6.02
Unit Price: USD $6.0192
≥1 USD $6.0192
Inventory: 111
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 5.449997g
Technical
Packaging Bulk
Published 2011
Series MICRO-COMBICON MCD
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 12
Color Green
Number of Rows 1
Voltage - Rated 80V
Additional Feature PA, 94V-0
Pitch 0.098 2.50mm
Depth 6.35mm
Insulation Height 0.862 21.89mm
Reach Compliance Code unknown
Current Rating 4A
Termination Style Solder
Voltage 125V
Contact Tail Length 0.150 3.81mm
Number of Levels 2
Current 4A
Contact Mating Finish Tin
Number of Decks 1
Voltage - IEC 320V
Positions Per Level 6
Number of Ways 6
Safety Approval UL
Header Orientation 90°, Right Angle
Dimensions
Length 19.05mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
