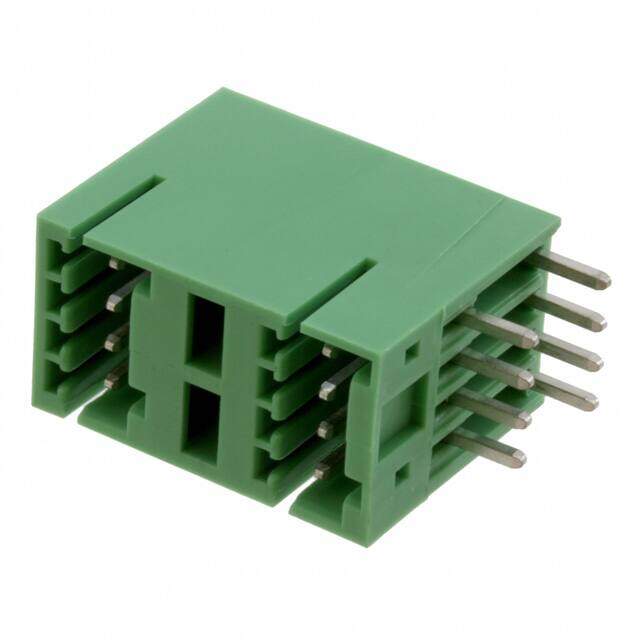

1894820 image
Favorite
1894820 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 4 Pos 2.5mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $4.65
Unit Price: USD $4.6464
≥1 USD $4.6464
≥10 USD $4.51704
≥100 USD $4.22136
≥500 USD $3.883704
≥1000 USD $3.810963
Inventory: 407
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 25.7mm
Length 11.9mm
Height 17.5mm

Technical

Header Orientation 90°, Right Angle
Safety Approval UL
Number of Ways 4
Positions Per Level 4
Voltage - IEC 320V
Number of Decks 1
Current 4A
Number of Levels 2
Max Current Rating 4A
Contact Tail Length 0.150 3.81mm
Voltage 125V
Termination Style Solder
Current Rating 4A
Insulation Height 0.862 21.89mm
Depth 17.5mm
Orientation Right Angle
Pitch 0.098 2.50mm
Voltage - Rated 80V
Gender Male
Number of Rows 1
Color Green
Number of Positions 8
Type Header, Male Pins, Shrouded (4 Side)
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series MICRO-COMBICON MCD
Published 2011
Packaging Bulk

Physical

Weight 3.799998g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin

Supply Chain

Factory Lead Time 4 Weeks
