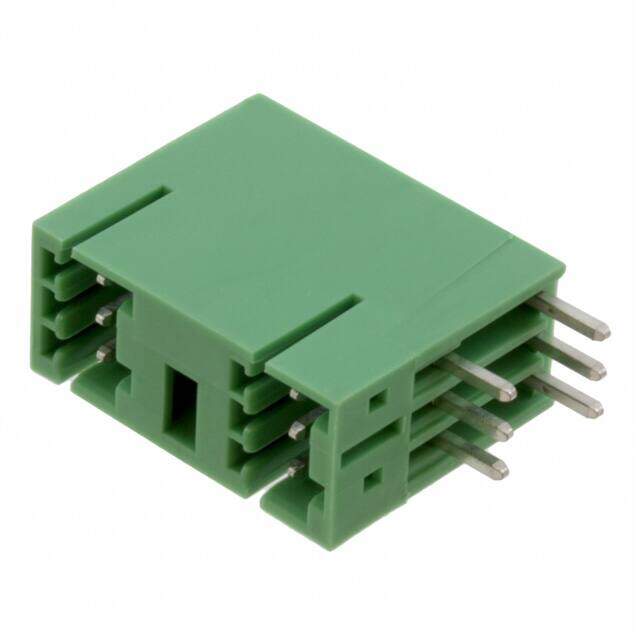

1894817
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 3 Pos 2.5mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $3.51
Unit Price: USD $3.5112
≥1 USD $3.5112
≥10 USD $3.41528
≥100 USD $3.19176
≥500 USD $2.936472
≥1000 USD $2.881437
Inventory: 83
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 3.169987g
Technical
Packaging Bulk
Published 2011
Series MICRO-COMBICON MCD
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 6
Color Green
Number of Rows 1
Voltage - Rated 80V
Additional Feature PA, 94V-0
Pitch 0.098 2.50mm
Orientation Right Angle
Depth 17.5mm
Insulation Height 0.862 21.89mm
Reach Compliance Code unknown
Current Rating 4A
Termination Style Solder
Voltage 125V
Contact Tail Length 0.150 3.81mm
Max Current Rating 16A
Number of Levels 2
Current 4A
Contact Mating Finish Tin
Number of Decks 1
Voltage - IEC 320V
Positions Per Level 3
Number of Ways 3
Safety Approval UL
Header Orientation 90°, Right Angle
Dimensions
Length 9.4mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
