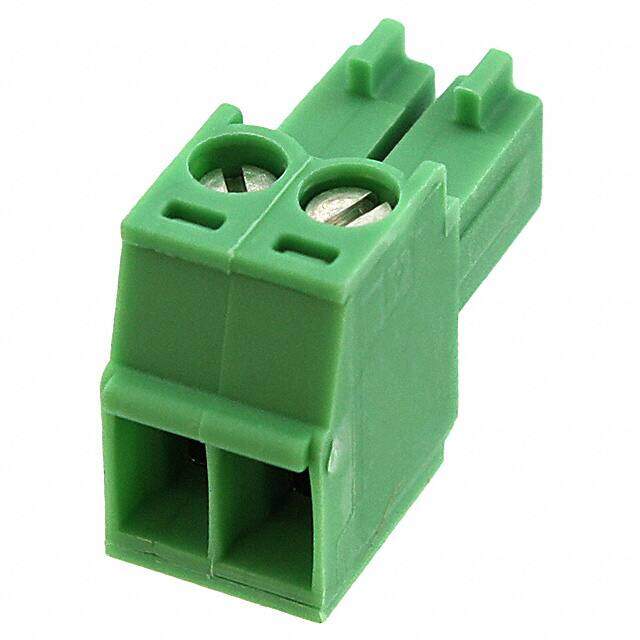

1894655
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Header, nominal current: 4 A, rated voltage: 80 V, pitch: 2.5 mm, no. of positions: 2, mounting: Soldering
PDF
/
Buying Options
Total Price: USD $3.08
Unit Price: USD $3.08
≥1 USD $3.08
≥10 USD $2.99992
≥100 USD $2.80368
≥500 USD $2.579368
≥1000 USD $2.531091
Inventory: 1351
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 16.1mm
Length 7mm
Height 11.1mm
Technical
Screw Size M2
Wire Gauge or Range - mm2 0.14-1.5mm2
Plug Wire Entry 180°
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Voltage - IEC 320V
Wire Gauge or Range - AWG 14-30 AWG
Wire Gauge (Min) 14 AWG
Wire Gauge (Max) 30 AWG
Current 8A
Number of Levels 1
Voltage 300V
Termination Style Screw - Rising Cage Clamp
Current Rating 8A
Insulation Height 0.437 11.10mm
Pitch 0.138 3.50mm
HTS Code 8536.69.40.40
Voltage - Rated 160V
Color Green
Number of Positions 2
Type Plug, Female Sockets
Connector Type Screw, Socket
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series MINI-COMBICON MC
Published 2010
Packaging Bulk
Physical
Weight 1.350004g
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Plating Gold
Supply Chain
Factory Lead Time 6 Weeks
