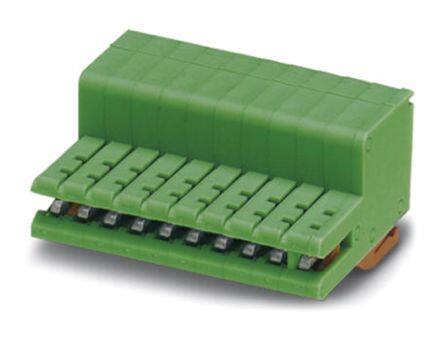

1893779 image
Favorite
1893779 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks ZEC 1.0/11-ST-3.5- C1 R1.11
PDF
/
Inventory: 1275
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 10 Weeks

Physical

Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide, Tin
Housing Material Polyamide (PA), Nylon
Weight 12.509993g

Technical

Packaging Bulk
Published 2001
Series COMBICON ZEC
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Type Plug, Card Edge
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 320V
HTS Code 8536.69.40.40
Pitch 0.138 3.50mm
Insulation Height 0.689 17.50mm
Current Rating 8A
Termination Style Screwless - Spring Cage, Tension Clamp
Voltage 150V
Number of Levels 1
Current 8A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 16 AWG
Contact Mating Finish Tin
Number of Decks 1
Wire Gauge or Range - AWG 16-26 AWG
Voltage - IEC 320V
Number of Ways 11
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-1mm2
Wire Strip Length 7mm
Number of Positions Per Level 11
Fastening Method SPRING LOADED

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
