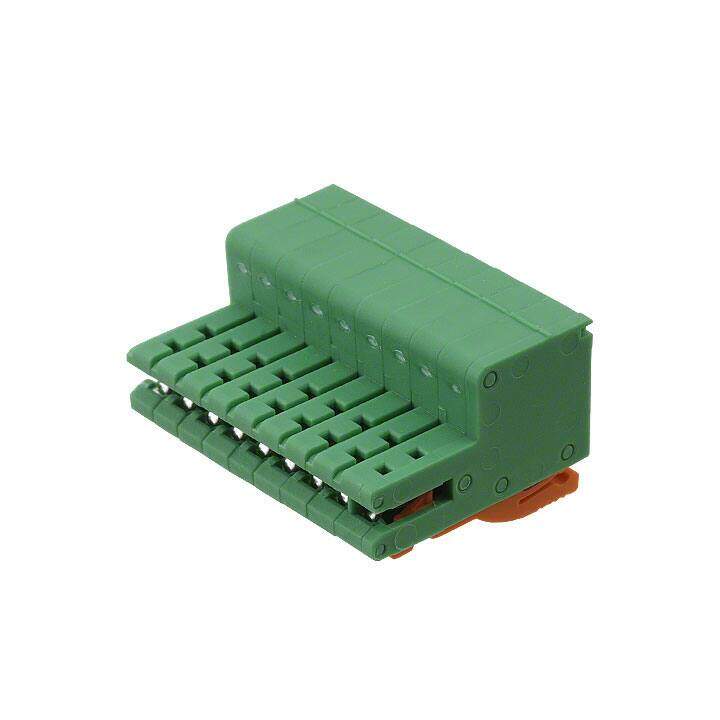

1893753
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks ZEC1.0/9-ST3.5C1R1.9
PDF
/
Buying Options
Total Price: USD $10.35
Unit Price: USD $10.3533
≥1 USD $10.3533
≥10 USD $9.767265
≥100 USD $9.214405
≥500 USD $8.692832
≥1000 USD $8.200785
Inventory: 6828
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Plating Tin
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Insulation Material Nylon
Material Polyamide, Tin
Housing Material Polyamide (PA), Nylon
Weight 10.800006g
Technical
Packaging Bulk
Published 2001
Series COMBICON ZEC
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
Connector Type Plug
Type Plug, Card Edge
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 125V
Pitch 0.138 3.50mm
Orientation Straight
Insulation Height 0.689 17.50mm
Reach Compliance Code unknown
Current Rating 8A
Termination Style Screwless - Spring Cage, Tension Clamp
Number of Contacts 9
Voltage 150V
Max Current Rating 8A
Number of Levels 1
Current 8A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 24 AWG
Number of Decks 1
Wire Gauge or Range - AWG 16-26 AWG
Voltage - IEC 320V
Number of Ways 9
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-1mm2
Fastening Method SPRING LOADED
Dimensions
Height 24.05mm
Length 7mm
Width 32.9mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
