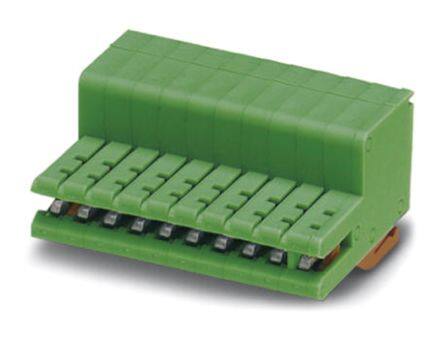

1893711 image
Favorite
1893711 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks ZEC 1.0/ 5-ST-3.5- C1 R1.5
PDF
/
Inventory: 1114
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 24.05mm
Length 17.5mm
Height 18.9mm

Technical

Fastening Method SPRING LOADED
Number of Positions Per Level 5
Wire Strip Length 7mm
Wire Gauge or Range - mm2 0.2-1mm2
Plug Wire Entry 180°
Number of Ways 5
Voltage - IEC 320V
Wire Gauge or Range - AWG 16-26 AWG
Number of Decks 1
Wire Gauge (Min) 16 AWG
Wire Gauge (Max) 26 AWG
Current 8A
Number of Levels 1
Voltage 150V
Termination Style Screwless - Spring Cage, Tension Clamp
Current Rating 8A
Insulation Height 0.689 17.50mm
Pitch 0.138 3.50mm
Voltage - Rated 320V
Gender Female
Number of Rows 1
Color Green
Type Plug, Card Edge
Connector Type Plug
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON ZEC
Published 2001
Packaging Bulk

Physical

Weight 5.899989g
Housing Material Polyamide (PA), Nylon
Material Polyamide, Tin
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Plating Tin

Supply Chain

Factory Lead Time 4 Weeks
