1893313
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

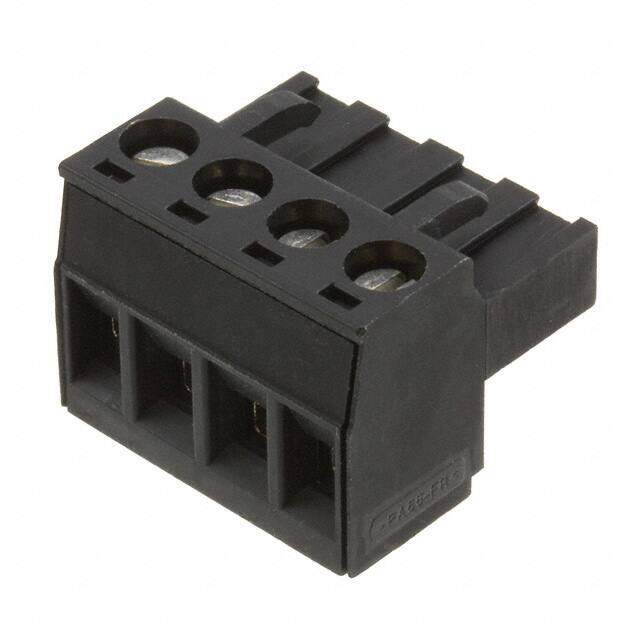

Pluggable Terminal Blocks 4 Pos 5mm pitch Plug 24-12 AWG Screw
PDF
/
Buying Options
Total Price: USD $5.13
Unit Price: USD $5.1304
≥1 USD $5.1304
≥10 USD $4.99136
≥100 USD $4.66488
≥500 USD $4.291672
≥1000 USD $4.211363
Inventory: 105
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-2
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-2
Dimensions
Width 20mm
Length 15mm
Height 18.2mm
Technical
Screw Size M3
Wire Strip Length 7mm
Wire Gauge or Range - mm2 0.2-2.5mm2
Plug Wire Entry 180°
Number of Ways 4
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Voltage - IEC 630V
Current - UL 15A
Wire Gauge or Range - AWG 12-30 AWG
Number of Decks 1
Wire Gauge (Min) 24 AWG
Wire Gauge (Max) 12 AWG
Current 12A
Number of Levels 1
Max Current Rating 12A
Voltage 300V
Number of Contacts 4
Termination Style Screw - Rising Cage Clamp
Current Rating 12A
Insulation Height 0.591 15.00mm
Orientation Right Angle
Pitch 0.197 5.00mm
Voltage - Rated 250V
Gender Female
Number of Rows 1
Color Black
Type Plug, Female Sockets
Connector Type Screw, Socket
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Retention Latches (Non-Wire Side)
Series COMBICON MSTBT
Published 2011
Packaging Bulk
Physical
Weight 6.589988g
Housing Material Polyamide (PA), Nylon
Material Polyamide
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Tin
Supply Chain
Factory Lead Time 7 Weeks
