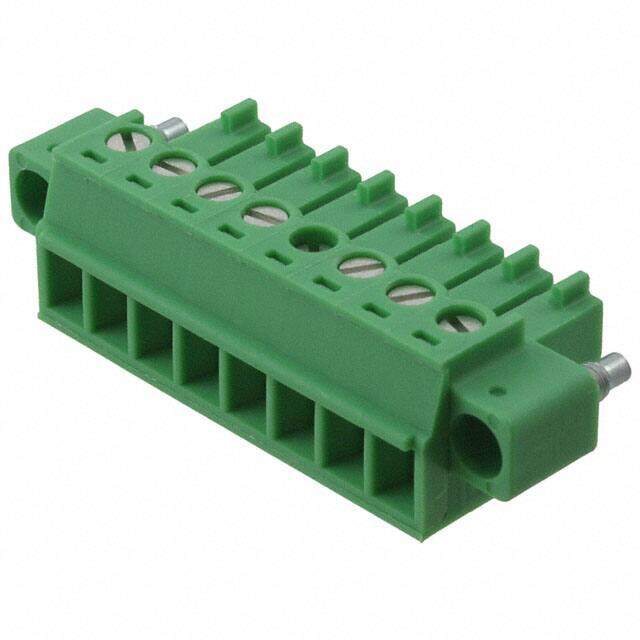

1892945 image
Favorite
1892945 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 8 Pos 3.81mm pitch Plug 28-16 AWG Screw
PDF
/
Buying Options
Total Price: USD $8.92
Unit Price: USD $8.9232
≥1 USD $8.9232
≥10 USD $8.67768
≥100 USD $8.11008
≥500 USD $7.461256
≥1000 USD $7.3216
Inventory: 122
Minimum: 1
-
+

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant

Dimensions

Length 7mm

Technical

Screw Size M2
Number of Positions Per Level 8
Wire Gauge or Range - mm┬▓ 0.14-1.5mm2
Plug Wire Entry 180┬?
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Voltage - IEC 160V
Wire Gauge or Range - AWG 14-30 AWG
Contact Mating Finish Gold
Wire Gauge (Min) 14 AWG
Wire Gauge (Max) 30 AWG
Current 8A
Number of Levels 1
Voltage 300V
Termination Style Screw - Rising Cage Clamp
Current Rating 8A
Insulation Height 0.437 11.10mm
Orientation Straight
Pitch 0.150 3.81mm
Voltage - Rated 160V
Color Green
Type Plug, Female Sockets
Connector Type Screw
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Mating Flange
Series COMBICON MC
Published 2011
Packaging Bulk

Physical

Weight 6.479992g
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging

Supply Chain

Factory Lead Time 6 Weeks
