1892880
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

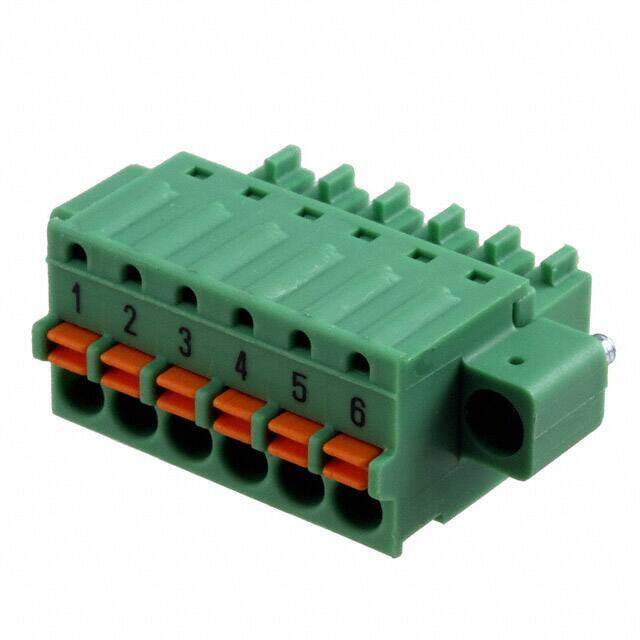

TERM BLOCK PLUG 6POS STR 3.81MM
PDF
/
Buying Options
Total Price: USD $23.64
Unit Price: USD $23.642703
≥1 USD $23.642703
≥200 USD $9.434499
≥500 USD $9.118091
≥1000 USD $8.963168
Inventory: 8444
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Fastening Method SPRING LOADED
Wire Strip Length 9mm
Wire Gauge or Range - mm2 0.14-1.5mm2
Plug Wire Entry 180°
Safety Approval CB; CCA; CSA; CUL; EAC; UL
Number of Ways 6
Wire Gauge or Range - AWG 16-28 AWG
Number of Decks 1
Contact Mating Finish Tin
Wire Gauge (Min) 16 AWG
Wire Gauge (Max) 28 AWG
Current 8A
Number of Levels 1
Voltage 300V
Termination Style Screwless - Leg Spring, Push-In Spring
Current Rating 8A
Reach Compliance Code unknown
Insulation Height 0.488 12.40mm
Pitch 0.150 3.81mm
Additional Feature SAFETY APPROVAL: VDE
Voltage - Rated 160V
Number of Rows 1
Color Green
Number of Positions 6
Type Plug, Female Sockets
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Mating Flange, Positions Stamped
Series COMBICON FK-MCP
Published 2011
Packaging Bulk
Physical
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 7 Weeks
