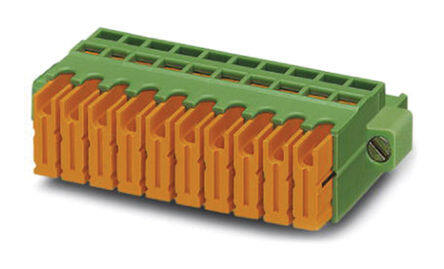

1883857
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 13 Pos 5.08mm pitch Plug 20-18 AWG IDC
PDF
/
Buying Options
Total Price: USD $42.57
Unit Price: USD $42.573408
≥1 USD $42.573408
≥200 USD $16.987613
≥500 USD $16.419127
≥1000 USD $16.13948
Inventory: 1140
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide, Tin
Housing Material Polyamide (PA), Nylon
Weight 23.170009g
Technical
Packaging Bulk
Published 2011
Series COMBICON QC
Feature Mating Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type IDC, IDT
Type Plug, Female Sockets
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 500V
Additional Feature PA, 94V-0
HTS Code 8536.69.40.40
Pitch 0.200 5.08mm
Insulation Height 0.591 15.00mm
Current Rating 10A
Termination Style IDC
Voltage 300V
Number of Levels 1
Current 10A
Wire Gauge (Max) 18 AWG
Wire Gauge (Min) 20 AWG
Contact Mating Finish Tin
Voltage - UL 300V
Number of Decks 1
Wire Gauge or Range - AWG 18-22 AWG
Voltage - IEC 1kV
Number of Ways 13
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.5-1mm2
Number of Positions Per Level 13
Fastening Method IDC
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
