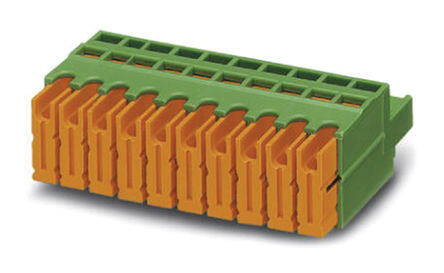

1883705
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 12 Pos 5.08mm pitch Plug 20-18 AWG IDC
PDF
/
Buying Options
Total Price: USD $42.24
Unit Price: USD $42.235993
≥1 USD $42.235993
≥200 USD $16.852384
≥500 USD $16.28915
≥1000 USD $16.010816
Inventory: 1146
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Plating Tin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide, Tin
Housing Material Polyamide (PA), Nylon
Weight 20.950014g
Technical
Packaging Bulk
Published 2011
Series COMBICON QC
Feature Retention Latches (Non-Wire Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type IDC, IDT, Socket
Type Plug, Female Sockets
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 500V
Additional Feature PA, 94V-0
HTS Code 8536.69.40.40
Pitch 0.200 5.08mm
Insulation Height 0.591 15.00mm
Current Rating 10A
Termination Style IDC
Voltage 300V
Number of Levels 1
Current 10A
Wire Gauge (Max) 18 AWG
Wire Gauge (Min) 20 AWG
Voltage - UL 300V
Number of Decks 1
Wire Gauge or Range - AWG 18-22 AWG
Voltage - IEC 1kV
Number of Ways 12
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.5-1mm2
Number of Positions Per Level 12
Fastening Method IDC
Dimensions
Height 28.2mm
Length 15mm
Width 61.78mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
