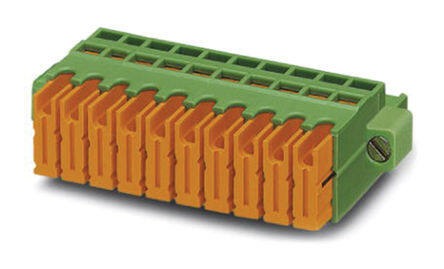

1883381 image
Favorite
1883381 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 5 Pos 5.08mm pitch Plug 20-18 AWG IDC
PDF
/
Buying Options
Total Price: USD $7.75
Unit Price: USD $7.7528
≥1 USD $7.7528
≥10 USD $7.54248
≥100 USD $7.0488
≥500 USD $6.484896
≥1000 USD $5.991533
≥3000 USD $5.844309
Inventory: 96
Minimum: 1
-
+

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Technical

Fastening Method IDC
Number of Positions Per Level 5
Wire Gauge or Range - mm2 0.5-1mm2
Plug Wire Entry 180°
Safety Approval UL
Number of Ways 5
Voltage - IEC 1kV
Wire Gauge or Range - AWG 18-22 AWG
Number of Decks 1
Voltage - UL 300V
Contact Mating Finish Tin
Wire Gauge (Min) 20 AWG
Wire Gauge (Max) 18 AWG
Current 10A
Number of Levels 1
Voltage 300V
Termination Style IDC
Current Rating 10A
Insulation Height 0.591 15.00mm
Pitch 0.200 5.08mm
Additional Feature PA, 94V-0
Voltage - Rated 500V
Gender Female
Number of Rows 1
Color Green
Type Plug, Female Sockets
Connector Type IDC, IDT
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating Flange
Series COMBICON QC
Published 2011
Packaging Bulk

Physical

Weight 9.910001g
Housing Material Polyamide (PA), Nylon
Material Polyamide, Tin
Mounting Type Free Hanging (In-Line)
Mount Free Hanging

Supply Chain

Factory Lead Time 7 Weeks
