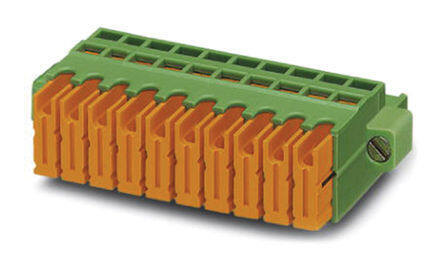

1883365
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 3 Pos 5.08mm pitch Plug 20-18 AWG IDC
PDF
/
Inventory: 1076
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Fastening Method IDC
Number of Positions Per Level 3
Wire Gauge or Range - mm2 0.5-1mm2
Plug Wire Entry 180°
Safety Approval UL
Number of Ways 3
Voltage - IEC 1kV
Wire Gauge or Range - AWG 18-22 AWG
Number of Decks 1
Voltage - UL 300V
Contact Mating Finish Tin
Wire Gauge (Min) 20 AWG
Wire Gauge (Max) 18 AWG
Current 10A
Number of Levels 1
Voltage 300V
Termination Style IDC
Current Rating 10A
Insulation Height 0.591 15.00mm
Pitch 0.200 5.08mm
Additional Feature PA, 94V-0
Voltage - Rated 500V
Gender Female
Number of Rows 1
Color Green
Type Plug, Female Sockets
Connector Type IDC, IDT
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating Flange
Series COMBICON QC
Published 2010
Packaging Bulk
Physical
Weight 6.479992g
Housing Material Polyamide (PA), Nylon
Material Polyamide, Tin
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 7 Weeks
