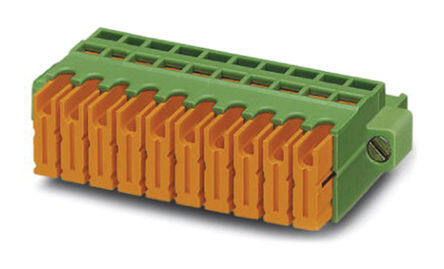

1883352
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 2 Pos 5.08mm pitch Plug 20-18 AWG IDC
PDF
/
Buying Options
Total Price: USD $3.4
Unit Price: USD $3.398651
≥1 USD $3.398651
≥10 USD $3.206272
≥100 USD $3.024785
≥500 USD $2.853569
≥1000 USD $2.692051
Inventory: 2186
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Plating Tin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide, Tin
Housing Material Polyamide (PA), Nylon
Weight 4.749991g
Technical
Packaging Bulk
Published 2011
Series COMBICON QC
Feature Mating Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type IDC, IDT, Socket
Type Plug, Female Sockets
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 500V
Additional Feature POLYAMIDE, 94V-0
HTS Code 8536.69.40.40
Pitch 0.200 5.08mm
Orientation Right Angle
Depth 28.2mm
Insulation Height 0.591 15.00mm
Current Rating 10A
Termination Style IDC
Voltage 300V
Max Supply Voltage 500V
Max Current Rating 10A
Number of Levels 1
Current 10A
Wire Gauge (Max) 18 AWG
Wire Gauge (Min) 20 AWG
Number of Decks 1
Wire Gauge or Range - AWG 18-22 AWG
Voltage - IEC 1kV
Number of Ways 2
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.5-1mm2
Number of Positions Per Level 2
Dimensions
Height 20.18mm
Length 20.18mm
Width 28.2mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
