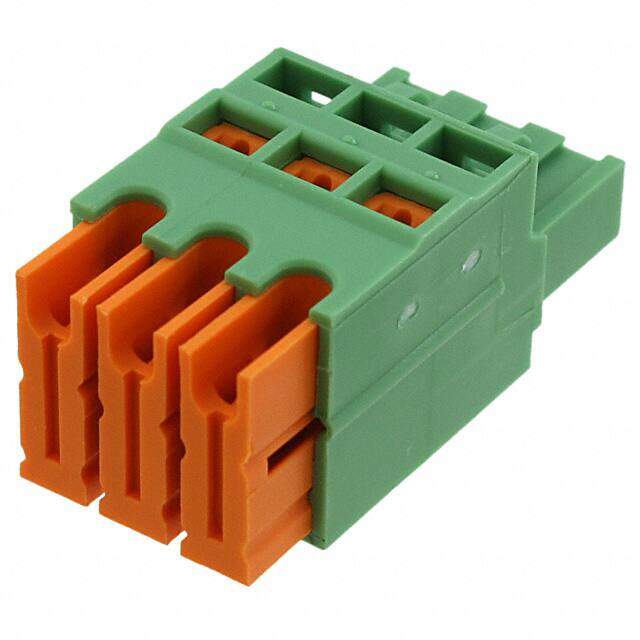

1883268 image
Favorite
1883268 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 3 Pos 5.08mm pitch Plug 20-18 AWG IDC
PDF
/
Buying Options
Total Price: USD $4.89
Unit Price: USD $4.892324
≥1 USD $4.892324
≥10 USD $4.615397
≥100 USD $4.354144
≥500 USD $4.107681
≥1000 USD $3.875174
Inventory: 3019
Minimum: 1
-
+

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 28.2mm
Length 15mm
Height 16.06mm

Technical

Fastening Method IDC
Wire Gauge or Range - mm2 0.5-1mm2
Plug Wire Entry 180°
Safety Approval UL
Number of Ways 3
Voltage - IEC 1kV
Wire Gauge or Range - AWG 18-22 AWG
Number of Decks 1
Wire Gauge (Min) 18 AWG
Wire Gauge (Max) 22 AWG
Current 10A
Number of Levels 1
Voltage 300V
Termination Style IDC
Current Rating 10A
Insulation Height 0.591 15.00mm
Pitch 0.200 5.08mm
Additional Feature PA, 94V-0
Voltage - Rated 500V
Number of Rows 1
Color Green
Number of Positions 3
Type Plug, Female Sockets
Connector Type IDC, IDT, Socket
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Retention Latches (Non-Wire Side)
Series COMBICON QC
Published 2011
Packaging Bulk

Physical

Weight 5.53g
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Plating Tin

Supply Chain

Factory Lead Time 7 Weeks
