1883129
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

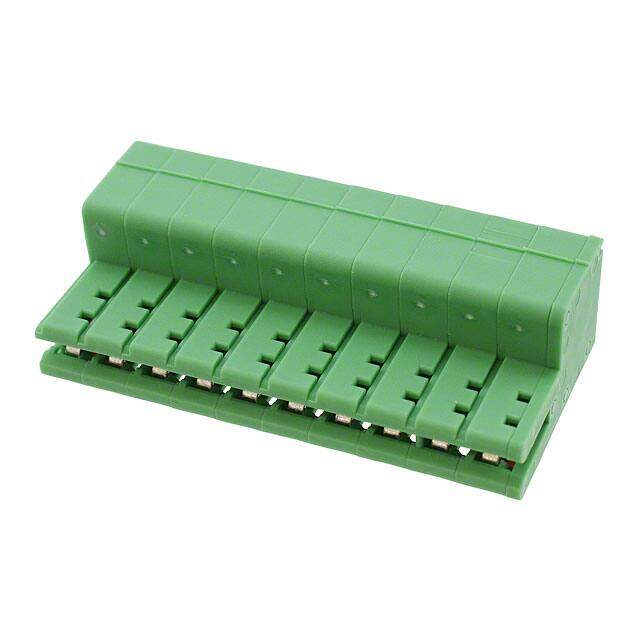

Pluggable Terminal Blocks ZEC 1.5/10-ST-5.0 C2 R1.10
PDF
/
Buying Options
Total Price: USD $7.68
Unit Price: USD $7.6824
≥1 USD $7.6824
≥10 USD $7.47472
≥100 USD $6.98544
≥500 USD $6.42664
≥1000 USD $6.306291
Inventory: 201
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 46.4mm
Length 17.5mm
Height 24.05mm
Technical
Fastening Method SPRING LOADED
Stripping Length 7mm
Wire Gauge or Range - mm2 0.2-1.5mm2
Plug Wire Entry 180°
Safety Approval UL
Number of Ways 10
Voltage - IEC 630V
Wire Gauge or Range - AWG 14-26 AWG
Number of Decks 1
Wire Gauge (Min) 14 AWG
Wire Gauge (Max) 26 AWG
Current 10A
Number of Levels 1
Max Current Rating 10A
Voltage 300V
Number of Contacts 10
Approval Agency CB, UL, VDE
Termination Style Screwless - Spring Cage, Tension Clamp
Current Rating 10A
Reach Compliance Code unknown
Insulation Height 0.689 17.50mm
Depth 17.5mm
Orientation Right Angle
Pitch 0.197 5.00mm
HTS Code 8536.69.40.40
Additional Feature PA, 94V-0
Voltage - Rated 320V
Gender Male
Number of Rows 1
Color Green
Type Plug, Card Edge
Connector Type Plug
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON ZEC
Published 2001
Packaging Bulk
Physical
Weight 15.07999g
Housing Material Polyamide (PA), Nylon
Material Polyamide
Insulation Material Nylon
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Tin
Supply Chain
Factory Lead Time 4 Weeks
