1883116
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

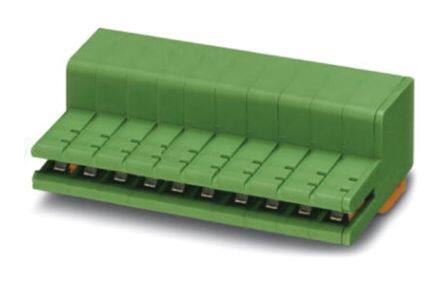

Pluggable Terminal Blocks ZEC 1.5/ 9-ST-5.0 C2 R1.9
PDF
/
Inventory: 1255
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Plating Tin
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Insulation Material Nylon
Material Polyamide, Tin
Housing Material Polyamide (PA), Nylon
Weight 14.499987g
Technical
Packaging Bulk
Published 2001
Series COMBICON ZEC
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
Connector Type Plug
Type Plug, Card Edge
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 320V
Pitch 0.197 5.00mm
Orientation Right Angle
Depth 24.05mm
Insulation Height 0.689 17.50mm
Current Rating 10A
Termination Style Screwless - Spring Cage, Tension Clamp
Number of Contacts 9
Voltage 300V
Max Supply Voltage 250V
Max Current Rating 10A
Number of Levels 1
Current 10A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 24 AWG
Number of Decks 1
Wire Gauge or Range - AWG 14-26 AWG
Voltage - IEC 630V
Number of Ways 9
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-1.5mm2
Wire Strip Length 7mm
Fastening Method SPRING LOADED
Dimensions
Height 24.05mm
Length 17.5mm
Width 41.4mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
