1881642
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

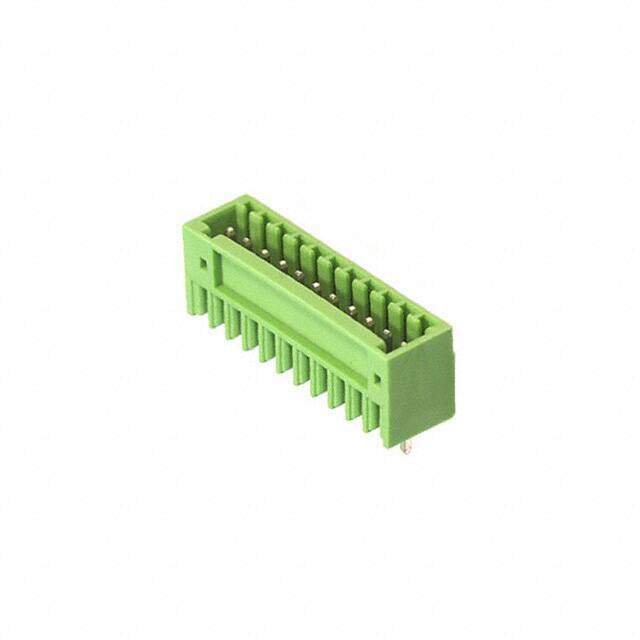

TERM BLOCK HDR 11POS VERT 2.5MM
PDF
/
Buying Options
Total Price: USD $3.89
Unit Price: USD $3.8896
≥1 USD $3.8896
≥10 USD $3.7796
≥100 USD $3.53232
≥500 USD $3.249752
≥1000 USD $3.188909
Inventory: 278
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Material PBT
Housing Material Polyamide (PA), Nylon
Weight 2.050011g
Technical
Packaging Bulk
Published 2010
Series MICRO-COMBICON MCV
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Color Green
Number of Rows 1
Gender Male
Voltage - Rated 80V
Additional Feature PA, 94V-0
HTS Code 8536.69.40.40
Pitch 0.098 2.50mm
Orientation Straight
Depth 8.1mm
Insulation Height 0.398 10.11mm
Reach Compliance Code unknown
Current Rating 4A
Termination Style Solder
Approval Agency UL
Voltage 125V
Contact Tail Length 0.138 3.50mm
Max Current Rating 4A
Number of Levels 1
Current 4A
Number of Poles 11
Number of Decks 1
Voltage - IEC 320V
Number of Ways 11
Safety Approval UL
Header Orientation Vertical
Dimensions
Height 13.6mm
Length 29.4mm
Width 8.1mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
