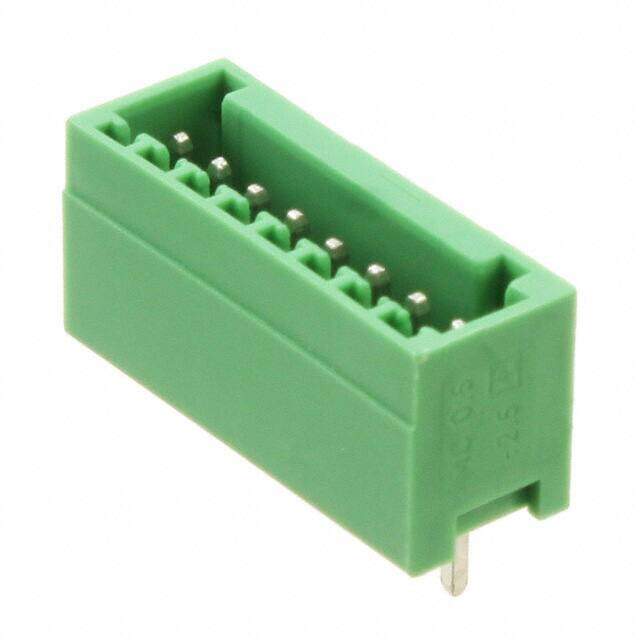

1881613
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 8POS VERT 2.5MM
PDF
/
Buying Options
Total Price: USD $2.38
Unit Price: USD $2.376
≥1 USD $2.376
Inventory: 421
Minimum: 1
-
+
Technical Details
Technical
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Color Green
Number of Rows 1
Voltage - Rated 80V
Additional Feature PA, 94V-0
Pitch 0.098 2.50mm
Orientation Straight
Depth 8.1mm
Insulation Height 0.398 10.11mm
Current Rating 4A
Termination Style Solder
Approval Agency UL
Voltage 125V
Contact Tail Length 0.138 3.50mm
Max Current Rating 4A
Number of Levels 1
Current 4A
Wire Gauge (Max) 20 AWG
Wire Gauge (Min) 26 AWG
Number of Poles 8
Number of Decks 1
Voltage - IEC 320V
Number of Ways 8
Safety Approval UL
Header Orientation Vertical
Series MICRO-COMBICON MCV
Published 2010
Packaging Bulk
Dimensions
Height 13.6mm
Length 21.9mm
Width 21.9mm
Physical
Weight 1.500002g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Supply Chain
Factory Lead Time 7 Weeks
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
