1881587
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

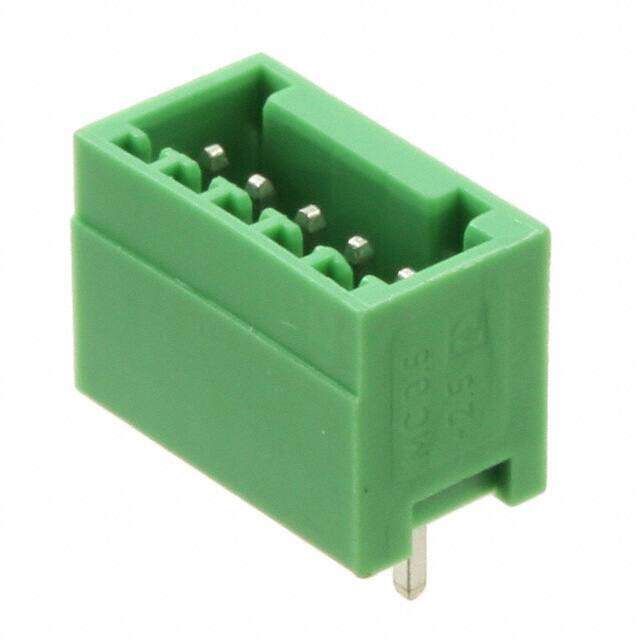

TERM BLOCK HDR 5POS VERT 2.5MM
PDF
/
Buying Options
Total Price: USD $1.52
Unit Price: USD $1.5224
≥1 USD $1.5224
Inventory: 194
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 1.010008g
Technical
Packaging Bulk
Published 2000
Series MICRO-COMBICON MCV
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Color Green
Number of Rows 1
Voltage - Rated 80V
Additional Feature PA, 94V-0
Pitch 0.098 2.50mm
Depth 8.1mm
Insulation Height 0.398 10.11mm
Current Rating 4A
Termination Style Solder
Approval Agency UL
Voltage 125V
Contact Tail Length 0.138 3.50mm
Max Current Rating 4A
Number of Levels 1
Current 4A
Wire Gauge (Max) 20 AWG
Wire Gauge (Min) 26 AWG
Number of Poles 5
Voltage - UL 125V
Number of Decks 1
Voltage - IEC 320V
Number of Ways 5
Safety Approval UL
Header Orientation Vertical
Dimensions
Height 8.1mm
Length 10.1mm
Width 14.4mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
