1881561
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

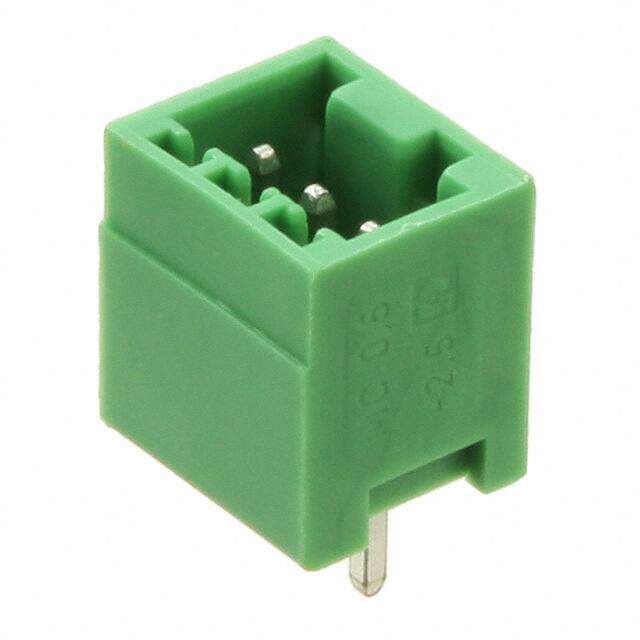

TERM BLOCK HDR 3POS VERT 2.5MM
PDF
/
Buying Options
Total Price: USD $1.13
Unit Price: USD $1.1264
≥1 USD $1.1264
≥10 USD $1.09296
≥100 USD $1.02168
≥500 USD $0.939928
≥1000 USD $0.922346
Inventory: 373
Minimum: 1
-
+
Technical Details
Dimensions
Height 8.1mm
Length 9.4mm
Width 13.6mm
Thickness 5mm
Technical
Fastening Method CONNECTOR
Header Orientation Vertical
Safety Approval CB; CCA; CUL; EAC; UL; VDE
Number of Ways 3
Voltage - IEC 320V
Number of Decks 1
Number of Poles 3
Wire Gauge (Min) 26 AWG
Wire Gauge (Max) 20 AWG
Current 4A
Number of Levels 1
Max Current Rating 4A
Contact Tail Length 0.138 3.50mm
Voltage 125V
Approval Agency EN, UL, VDE
Termination Style Solder
Current Rating 4A
Insulation Height 0.398 10.11mm
Depth 8.1mm
Orientation Straight
Pitch 0.098 2.50mm
Additional Feature STANDARD: UL 94V-0, PA
Voltage - Rated 80V
Number of Rows 1
Color Green
Type Header, Male Pins, Shrouded (4 Side)
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series MICRO-COMBICON MCV
Published 2005
Packaging Bulk
Physical
Weight 649.997866mg
Housing Material Polyamide (PA), Nylon
Insulation Material Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Supply Chain
Factory Lead Time 7 Weeks
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
