1881516
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

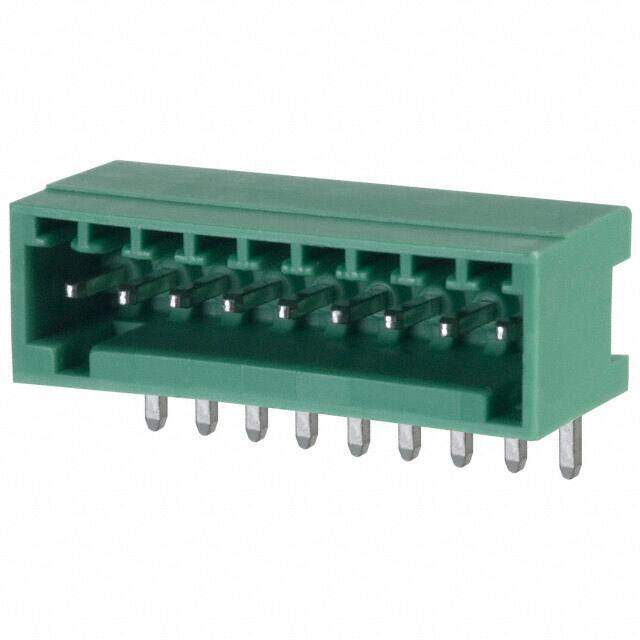

TERM BLOCK HDR 9POS 90DEG 2.5MM
PDF
/
Buying Options
Total Price: USD $2.68
Unit Price: USD $2.684
≥1 USD $2.684
Inventory: 119
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Insulation Material Nylon
Material Polyamide
Housing Material Polyamide (PA), Nylon
Weight 1.820011g
Technical
Packaging Bulk
Published 2012
Series MICRO-COMBICON MC
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Color Green
Number of Rows 1
Gender Male
Voltage - Rated 32V
Pitch 0.098 2.50mm
Orientation Right Angle
Depth 10.1mm
Insulation Height 0.319 8.10mm
Current Rating 4A
Termination Style Solder
Approval Agency EN, UL, VDE
Voltage 125V
Contact Tail Length 0.150 3.81mm
Max Current Rating 4A
Number of Levels 1
Current 4A
Wire Gauge (Max) 20 AWG
Wire Gauge (Min) 26 AWG
Number of Poles 9
Number of Decks 1
Voltage - IEC 320V
Number of Ways 9
Safety Approval UL
Header Orientation 90°, Right Angle
Dimensions
Height 8.1mm
Length 10.1mm
Width 24.4mm
Thickness 20mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
